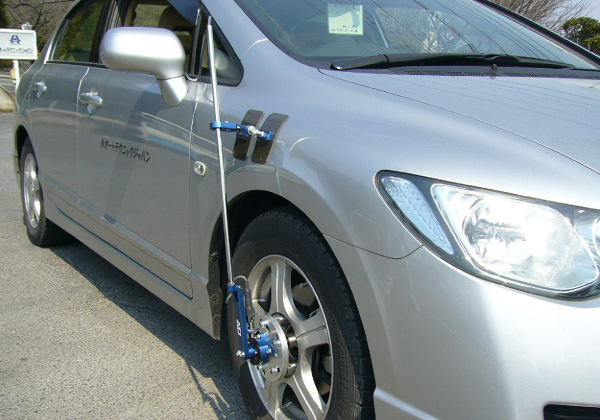

Tire Wheel Speed Sensor

Easy install by using our original development, “COLLET CHUCK system” and “PCD MULTI-PLATE function”
Advantages of Pulse-Unit
・MULTI-PLATE
Adjustable installation even different PCD diameter between 100 and 120.
Note: Please choose the plate type either four-holes or five-holes.
・COLLET CHUCK Adapter
Install without removing the wheel nuts
Note: Some car models may not be installed.
・Flexible Joint
Movable joint, back and forth for up and down.
・Fixed on the fender firmly with powerful magnet

Product
name
Tire Wheel Speed Sensor, Pulse Sensor
Model
number
TEE-037
Weight Approx. 5.8kg
External
dimensions
T:157 B:164 H:(942)
Measuring
range
1Hz - 20kHz (only for 30-70% of output-waveform duty ratio: 1 – 20000 rpm)
Number of
pulse
60 pulse/rotation (100 pulse type is optional)
Power supply DC12V ±2V (Ripple: Less than 0.5Vp-p)
Output
waveform
Short waveform (Only for no-load, Low: Less than +5V, High: 5V±0.5V)
Temperature
range to use
Between minus 10 degrees Celsius and plus 70 degrees Celsius
R/L turning and
vertical motion
stroke
Full turning is capable with ±45 degrees actual steer angle
Vertical motion: ±250mm

Note: Currently, domestic sales (Japan) only.
